Slotted Channel

Slotted Channel
Slotted Channel
Product Code : 0104
Product Description

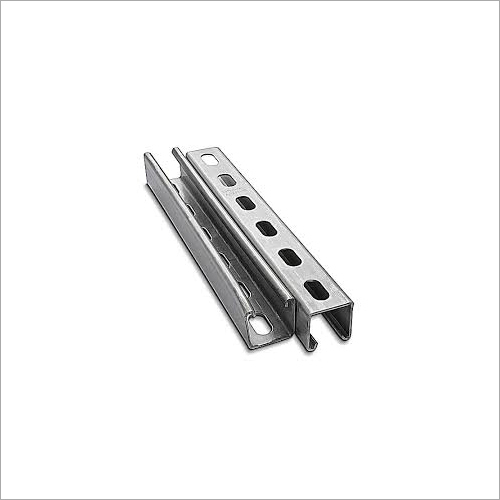

Strut channel, frequently passed onto colloquially by one of numerous maker trade names, is a consistent created structural system utilized in the building and electrical trades for beam structural hold up, frequently for supporting cabling, testing, or perfunctory apparatus such as air conditioning or aeration systems.

The chief benefit of strut channel in manufacture is that there are several options accessible for quickly and effortlessly involving lengths jointly and other things to the strut channel, utilizing numerous dedicated strut-specific closures and bolts.

Category & Specification of M-41/P Plain Channel

Span or Column Unsupported High in mm

Uniform Load at 175 N/mm2 Stress. Kg

Deflection in mm at 175N/mm2

Uniform Load at Max. Deflec. of 1/360th. Span. Kg

Uniform Load at Max. Deflec. of 1/200th. Span. Kg

Max. Load of Column Loaded @ slot face Kg

Max. Load of Column Loaded @ Centeroid Kg

250

1769

0.23

-

-

1693

5869

500

884

0.95

-

-

1650

5379

750

589

2.15

571

-

1554

4479

1000

442

3.82

321

-

1395

3373

1250

353

5.97

205

-

1232

2556

1500

294

8.60

142

257

1093

2020

1750

252

11.70

104

188

976

1656

2000

221

15.29

80

144

879

1395

2250

196

19.35

63

114

797

1198

2500

176

23.89

51

92

725

1044

2750

160

28.91

42

76

(663)

(919)

3000

147

34.40

35

64

(607)

(816)

Category & Specification of M-41/S Slotted Channel



Span or Column Unsupported High in mm

Uniform Load at 175 N/mm2 Stress. Kg

Deflection in mm at 175N/mm2

Uniform Load at Max. Deflec. of 1/360th. Span. Kg

Uniform Load at Max. Deflec. of 1/200th. Span. Kg

Max. Load of Column Loaded @ slot face Kg

Max. Load of Column Loaded @ Centeroid Kg

250

1638

0.27

-

-

1660

5351

500

819

1.05

-

-

1635

5100

750

546

2.35

483

-

1557

4412

1000

409

4.18

271

-

1389

3284

1250

327

6.54

174

313

1211

2436

1500

273

2.41

120

217

1062

1899

1750

234

12.81

88

159

941

1546

2000

204

16.73

67

122

843

1297

2250

182

21.18

53

96

761

1113

2500

163

26.15

43

78

691

970

2750

148

31.64

35

64

(631)

(855)

3000

136

37.65

30

54

(578)

(761)

Span or Column Unsupported High in mm

Uniform Load at 175 N/mm2 Stress. Kg

Deflection in mm at 175N/mm2

Uniform Load at Max. Deflec. of 1/360th. Span. Kg

Uniform Load at Max. Deflec. of 1/200th. Span. Kg

Max. Load of Column Loaded @ slot face Kg

Max. Load of Column Loaded @ Centeroid Kg

250

1638

0.27

-

-

1660

5351

500

819

1.05

-

-

1635

5100

750

546

2.35

483

-

1557

4412

1000

409

4.18

271

-

1389

3284

1250

327

6.54

174

313

1211

2436

1500

273

2.41

120

217

1062

1899

1750

234

12.81

88

159

941

1546

2000

204

16.73

67

122

843

1297

2250

182

21.18

53

96

761

1113

2500

163

26.15

43

78

691

970

2750

148

31.64

35

64

(631)

(855)

3000

136

37.65

30

54

(578)

(761)
